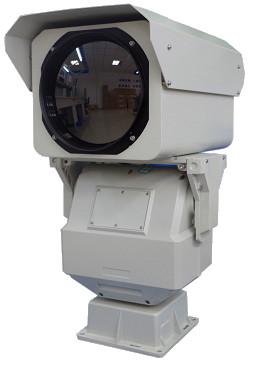

| Model | TC41021- S | TC4328- S |
| Detection | Vehicle: 17400m | Vehicle: 18000m |
| | Human: 6800m | Human: 8000m |
| Recognition | Vehicle: 4800m | Vehicle: 6000m |
| | Human: 1800m | Human: 2600m |
| Sensor | 1, Detector:5th generation UFPA Vox Detector ; 2, Resolution:336×256,(640X512 optional) 3, NETD:50mK(@25℃ F1.0) 4, Spectral range:7.5～14μm |
| NETD | 50mK(@25℃ F1.0) |
| Focal length | 1, Length: 21～210mm 2, FOV:16°×12°～1.6°×1.2° 3, Motorized zoom,focus(auto focus optional ) 4, AS+DOE advanced optical design, high infrared transmission; 5, Applied 3CAM high precision design; | 1, Length: 95/285mm 2, FOV:3.4°×2.4°/1.1°×0.8° 3, Motorized zoom, auto focus ; 4, AS+DOE advanced optical design, high infrared transmission; 5, Applied 3CAM high precision design; Dual focal fast switch ; |
| IFOV | 0.08～0.85mrad | 0.06～0.18mrad |
| Image processing | 1. stable operational temperature, starting time less than 4
seconds |
| 2. SDE digital image processing |
| 3. 10 pseudo color and B/W, B/W inverse |
| 4. AGC |
| 5. 2X digital amplification |
| Housing | 1, Material:aluminum alloy housing,waterproof; 2, Structure:Integral single window design ; 3, Surface:PTA coating,anti sea water corrosion; 4, Sealing rate:IP66 5, Built-in temperature controller,thermal balance design; 6, Interface:aviation waterproof connector ; |
| PTZ(optional) | 1, Load:50kg military level digital PT ; 2, Angle:pan 0～360°,tilt -45°～+45° 3, Speed:0.01～30°/S high precision variable speed control and
locking ; 4, Preset:80 presets,support lens zoom and focus memory,variable
speed scanning 0～30°/S ,support apple peel scanning function; 5, Protocol:Pelco-P,Pelco-D 6, Baud rate:2400,4800,9600,19200 optional ; |
| Consumption ,weight | 1, Consumption(PT included):min.40W,max.120W 2, weight(PT included):≤40kg |
| Interface | 1. RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option) |
| 2. Remote OSD setting |
| 3. PAL/NTSC video output |
| 4. AC24V( DC12V option) |
| 5. Waterproof connector |
| Environment indicator | 1, Working temperature:-25℃～+55℃(-40℃ optional) 2, Storage temperature:-35℃～+75℃ 3, Humidity:<90% 4, Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard) 5, Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard) 6, Anti-lightening:power 4000V,signal 2000V 7, Anti salty:PH6.5～7.2,continuous sprarying 48 hours ; 8, Protection rate:IP66 |
