Long Range PTZ IP Security Laser Camera with 300m IR Night Vision
BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise
gearing, 2 megapixel HD lens, digital decoder, CCD and CU. The
mechanical design of PTZ is simple and stable.
BRC19 camera could rotate to the proposed position quickly and
accurately. The camera has 128 preset, recording and patrol
function and could preset anywhere. It also have automatic
exposure, automatic focus function.
Feature
1,Initiate independent defrosting and defogging module in
China,solve the problem of camera lens
fogging due to different temperature indoor and outdoor in real
sense.
2,The camera machinery room adopts high quality heating components
to make the whole room defrosting
and defogging.
3,PTZ camera adopts integration structure of axis, so the camera
machinery room
and infrared room would not misplace due to jolt.
Application

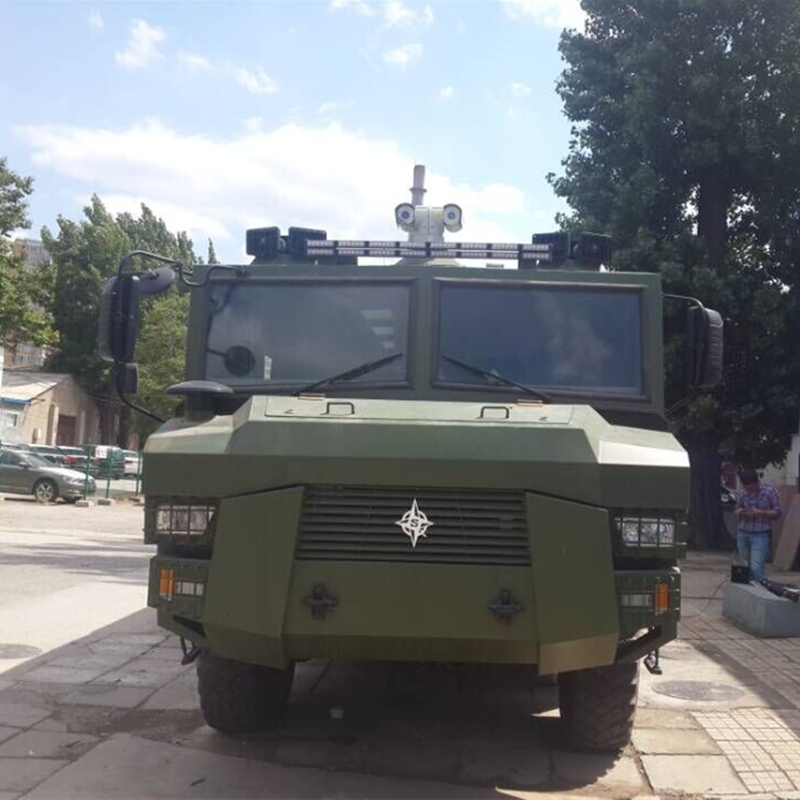

City security, oilfield monitoring, lake&river monitoring,
expressway&railway monitoring, seaport&airport monitoring.
Technical specification
| Model | BRC1920 | BRC1930 | BRC1920X | BRC1930X |
| Detection | Day: 700 | Day: 800m | Day: 700m | Day: 800m |
| | Night: 300m | Night: 300m | Night: 420m | Night: 420m |
| Sensor | 1/2.8'' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch |
| Encoding | Video compression: H.264, code stream 32k～16Mbps,support dual
stream, the heart, smart restructuring, electronic shutter, white
balance, 3D DNR, DWDR, automatic exposure, support SD card, motion
detection, mask alarm |
| Image setting | Lightness, contrast radio, saturation |
| Lens | 4.7～94mm,20 optical zoom F1.6～F3.5 | 4.3～120mm,30 optical zoom F1.6～F5.0 | 4.7～94mm,20 optical zoom F1.6～F3.5 | 4.3～129mm,30 optical zoom F1.6～F5.0 |
| FOV | 61.4°～2.9° | 65°～2.3° | 61.4°～2.9° | 65°～2.3° |
| Min.Illumination | 0.005lux B/W0.05lux Color/ |
| Consumption | 5W,808nm ,NIR |
| Laser lens | 30mm F1.0 Fast lens,GHT-II homogenizing | 30mmF1.4 telephoto lens,GHT-II homogenizing |
| Laser angle | 2°～50° | 1.2°～40° |
| Angle control | DSS digital illumination control,30ms fast track response, min 0.1°
illumination zooming, manual/automatic |
| Optical axis aiming | 0.01°SLM automatic axis automatic aiming and locking ,reserved
external interface, maintaining without take out the case |
| Pan rotation | 0°~360° continuously |
| Tilt rotation | -90°~+90° |
| Rotation speed | Pan: 0°~100°/s,Tilt: 0°~80°/s |
| Preset | 128 |
| Line scan | 3 path(User could set up the starting point, destination and
scanning speed) |
| Patrol | 6 path(each path have 16 point, staying time is adjustable) |
| Customized function | Customizable privacy shade, 3D box chosen magnification |
| Interface | RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP |
| Compatibility | Support ONVIF,GB/T28181 |
| Heat/demisting/ wiper | Yes |
| Laser switch | Auto/manual |
| Ingress protection | IP66,anti-lighting,anti surge |
| Operational temp. | -35~55℃ |
| Power supply | AC24V/2.5A,DC12V/3.5A, common≤40W,peak≤60W |
| Weight | 7kg |
* The detection distance is related to the object and environment
etc. Please contact with us for further information.
