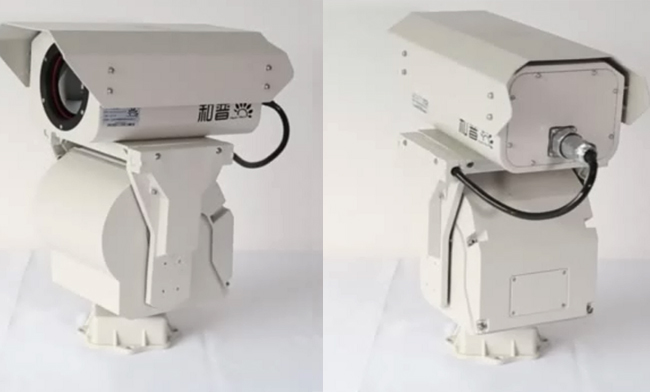

    Outdoor Infrared Thermal Imaging Camera / Ir Thermal Camera For Coastal Security

    Ask Lasest Price
    Brand Name : Hope-Wish
    Model Number : TC4105
    Certification : CE,FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Outdoor Infrared Thermal Imaging Camera / Ir Thermal Camera For Coastal Security

    Optical Zoom PTZ Thermal Imaging Camera Outdoor Surveillance For Coastal Security


    Feature


    1. Special AS optical zooming lens and high-precision optomechanical design make a good image quality.
    2. NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather..
    3. 5th generation small size sensor. On basis of same imaging quality, the 5th generation thermal camera is much smaller.
    4. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
    5. Non-uniform image correction technology, stable operational temperature without TEC, good image uniformity and dynamic range.

    Technical specification

    ModelTC4102- STC4105- S
    DetectionVehicle: 1700mVehicle: 4200m
     Human: 720mHuman: 1640m
    IdentificationVehicle: 420mVehicle: 1200m
     Human: 180mHuman: 470m
    Sensor5th generation UFPA sensor
    Resolution336×256 pixel, 9HZ
    Spectral range7.5~14μm
    NETD50mK
    Focal length20mmF1.050mmF1.0
    Field of view(horizontal)15.5°X 11.6°6.5°X 4.8°
    Image processing1. Stable operation temperature without TEC, starting time less than 4 seconds
    2,SDE digital image processing
    3,10 pseudo color and B/W, B/W conversion
    4,AGC
    5,2X digital amplification
    PTZ(Option)1. Duty: 10kg
    2. Rotation: pan: 0~355°, tilt: -60~+10°
    3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S
    4. 32 presets
    (optional variable speed PTZ)
    Interface1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional)
    2. Remote OSD setting
    3. PAL/NTSC video output
    4. AC24V/DC12V
    5. Waterproof aviation connector
    Environment parameters1. One integral aluminum alloy housing
    2. Operational temperature: -35°~55°(-45° optional )
    3. Power consumption: common 8W, peak 36W(PTZ excluded)

    * The detection distance is related to the object and environment etc. Please contact with us for further information


    Application

    City safety, oilfield safety, railway security, night gathering evidence.
