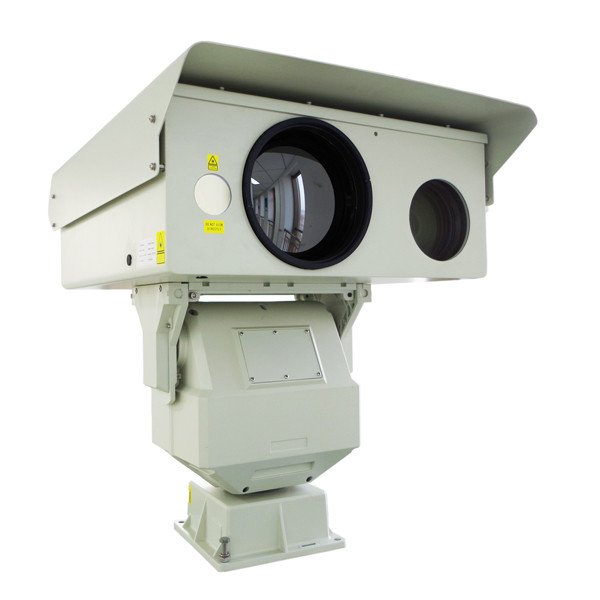

| Type | TRC6105A-2022-IP | TRC6307A-2050-IP | TRC6511A-2075K-IP |
| Detection | Vehicle: 4200m | Vehicle: 6500m | Vehicle: 8600m |
| Human: 1640m | Human: 2500m | Human: 3400m |
| 5th generation uncooled FPA sensor Resolution 640*512(336 × 256
pixel optional) |
| Spectral range 7.5 ～ 14 μ m, NETD 50mk |
| Thermal camera | 50mm | 25mm ～ 75mm | 21mm ～ 105mm |
| 1. Electric zoom and focus |
| 2. Special AS & DOE optical zooming lens |
| 3. 3CAM high-precision optomechanical design |
| Field of view | 6.5 °× 4.8 ° | 13 °～ 4.3 ° | 18 °～ 3.4 ° |
| IFOV | 0.34mrad | 0.22 ～ 0.68mrad | 0.17 ～ 0.85mrad |
| Image processing | SDE digital image processing |
| 10 pseudo color and B/W, B/W inverse |
| AGC & 2X digital amplification |
| Consumption | 6W, 808nm, NIR | 10W, 808nm, NIR | 15W, 808nm, NIR |
| Laser angle | 1.5 °～ 20 ° | 0.7 °～ 20 ° | 0.5 °～ 20 ° |
| Cooling Package | 1.filled with inert gas seal to prevent oxidation |
| 2.Laser with distributed design with more cooling capacity |
| Angle and distance matching | 1. Automatic tracking or manual fine-tuning intelligent matching |
| 2. DSS digital stepper illumination angle control, unique laser
angle and distance matching technology, min 0.1°follow-up zooming |
| 3. Z-super laser angle and magnification matching algorithm, the
tracking response time <30ms |
| 4. 0.01°SLM optical axis aiming and locking |
| CCD | 1/2.8'' CMOS 0.005lux low illumination color to B/W | 1/1.8'' CMOS 0.0002lux Star Ultra low-light color |
| 1. 2 megapixel HD, 1920*1080,Automatic ICR switch |
| 2. H.264/MPEG4/MIPEG H.264 video format |
| 3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec |
| 4. Support SD card local storage |
| 5. ABF Auto Back Focus adjustment function |
| Visible Lens | 1. 10mm～220mm | 1.15～528mm | 1. 20～750mm |
| 2. F2.2 ～ 360 | 2. F4.5 ～ 360 | 2. F4.6 ～ 360 |
| 3. FOV (H)43 °～ 2.8 ° | 3.FOV ( H ) 15 °～ 0.7 ° | 3. FOV (H)11 °～ 0.5 ° |
| 4. Close-up 1.5m | 4. Close-up 3 meter | 4. Close-up 2.5 meter |
| 5. HD infrared correction | 5. 105mm Large Aperture | 5. 105mm Large Aperture |
| Motorized & manual focus, DC8-12V, auto iris, (optional auto
focus), DC5V precision potentiometers preset positions, zoom focus
feedback |
| Fog penetration | Optical filtering and AFR image processing technology |
| Housing | 1. Material: aluminum alloy, stainless steel fasteners, anti strong
winds. |
| 2. Structure: integrated design, |
| 3. The surface coating: PTA three anti-paint, anti-seawater
corrosion |
| 4. Protection grade: IP66, waterproof and dustproof |
| 5.Interface: Aviation waterproof plug |
| PT | 1,Load duty : 30kg | 1,Load duty : 50kg |
| 2,Angle: | 2,Angle : Pan 360 ° 360°continuously |
| Pan 360°continuously | Tilt: +40 °～ -45 ° |
| Tilt: +40 °～ -45 ° | 3,Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S |
| 3,Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S | 4, Preset : 80 , Patrol & Scan |
| 4,Preset : 80 , Patrol & Scan | 5,Orientation and angle real-time display, with zero correction |
| 5,Orientation and angle real-time display, with zero correction |
| Interface | 1. Intelligent IP box, one 10M / 100M adaptive Ethernet port
(containing visible thermal image + HD + RS485 control), AC24V /
DC24V, |
| 2. (Optional) Reserved RS422 / 485 and analog video, azimuth return
for radar, GIS linkage position, or third-party intelligent
analysis |
| 3,Military-grade waterproof aviation plug |
| Protocol | 1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols |
| 2. Support ONVIF2.0 |
| 3,Pelco-P, Pelco-D and other industry-standard protocol, (optional)
Baud rate 2400, 4800, 9600, 19200 |
| Power | AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter |
| (Optional DC12V power supply, RC2013 only use AC24V, not DC power
supply) |
| Environmental Indicators | 1. Working temperature: -25 ℃ ~ + 55 ℃ |
| 2. Storage temperature: -35 ℃ ~ + 65 ℃ |
| 3. Humidity: <90% |
| 4. Ingress Protection: IP66 |
| Weight | ≤ 30kg | ≤ 40kg | ≤ 50kg |
