Product Description:
Key Benefits:
· Long range 24-hours monitoring.
· Delicate and smooth images．
· Convenient for installation and application.
· 360 degree of Omni-directional Pan-Tilt
· Super-strong aluminum alloy with IP66
· Higher sensitivity
· Effective in all environments
· Small size and low weight

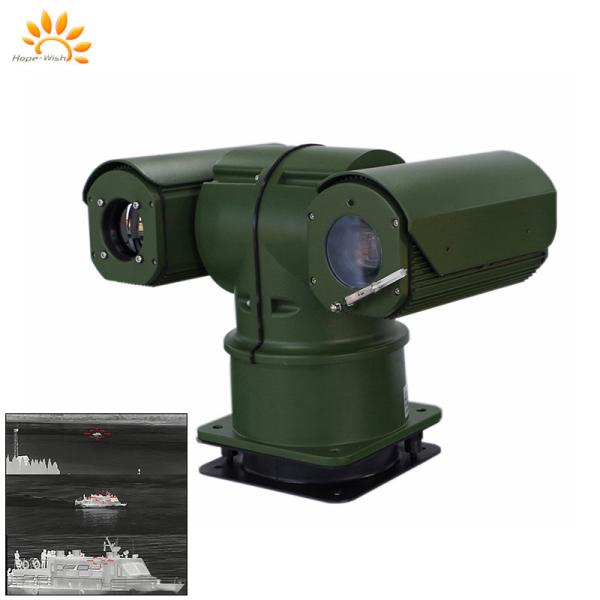

One of the main advantages of the Long Range Infrared Camera is its
ability to withstand extreme weather conditions. It can operate in
temperatures ranging from -25℃ to +55℃, and even has an optional
-40℃ working temperature for use in colder environments. Its IP66
rating also makes it waterproof and dustproof, ensuring that it can
continue to function even in harsh outdoor conditions.
Overall, the Long Range Infrared Camera is a top-of-the-line
surveillance camera that is not only durable and reliable but also
packed with advanced features. Its infrared capabilities, long
range monitoring, high-definition video, and PTZ control make it a
versatile and essential tool for outdoor surveillance and security.
Features:
· VOx uncooled detector, 384*288 (640*512);
· NETD is less than 50mk (@25℃F1.0);
· SDE digital image processing, AGC, 2X digital amplification;
· 10 pseudo color and B/W, B/W inverse;
· Intelligent functions: cross-border/ intrusion detection and
target tracking;
· 255 level alarm threshold can be setup
Technical Parameters:
| Model | HP-BTVC6105-1930 |
| Detection | Vehicle: 4,200m / Human: 1,640m |
| Identification | Vehicle: 1,200m / Human: 470m |
| Thermal Camera |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 384 × 288 pixel(optional 640 × 512 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 50mm F1.0 |
| Field of view(horizontal) | 7.4° X 5.6°(optional 12° X 9°) |
| Visible Camera |
| Imaging Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 2 Mega pixels, 1920 x 1080 |
| Illumination | 0.05 Lux high sensitive color, 0.01 Lux black and white |
| Video Bit Rate | 32Kbps-16Mbps, 60Hz 30 frames/second, ABF auto adjustment |
| Focal Length | 4.5 - 135mm 30X zoom, 2 Megapixel electric focus |
| PTZ |
| Duty | 10 kg |
| Rotation | Pan: 0 - 360° continuously,Tilt: +90°～- 90° |
| Rotation speed | Rotation speed:Pan: 0.01～100°/S,Tilt: 0.01～60°/S, support lens
focusing speed adaptive |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP,
SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0,
GB28181 and other network protocol. |
| Environment Parameter |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General |
| Total Consumption | 50W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤8.5 kg (include PTZ) |
Applications:
· Seaport and airport monitoring;
· Water system monitoring;
· Storage monitoring;
· Military base security monitoring;
· Oilfield & oil depot security;
· Ecological and environmental monitoring;
· Border and coastal defense;
· Highways and railways monitoring.
The Long Range Infrared Camera is suitable for a wide range of
applications, including but not limited to:
- Businesses - monitor your office, warehouse, or retail space
- Construction sites - keep an eye on your equipment and materials
- Parking lots - ensure the safety of your customers' vehicles
- Residential areas - secure your home and property
- Schools - monitor your campus and keep students safe
- Public spaces - provide a sense of security for visitors
Take advantage of the advanced features and capabilities of the
Long Range Infrared Camera to enhance your security and protect
your property.
Invest in the Long Range Infrared Camera by Hope-Wish today and
enjoy the peace of mind that comes with having a reliable and
high-quality surveillance solution at your disposal.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in
Jinan high tech Zone and has a core R&D team for laser imaging,
infrared thermal imaging detection and tracking technology research
and product. Hope-Wish focuses on the research and development of
night vision and multispectral imaging technology, by using a
variety of image analysis and processing technology based on
artificial intelligence to provide users with comprehensive
optoelectronic system solutions in long-distance, high-definition,
intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV,
intelligent transportation, forest fire prevention, environmental
protection, individual photoelectric equipment (handheld, helmet,
gun aiming), marine and other industries. The products developed by
the Hope-Wish, with their excellent performance, reliable quality
and thoughtful after-sales service has been widely praised by users
all over the world.FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Hope-Wish. - Q: What is the model number of this product?
A: The model number of this product is HP-. - Q: Where is this product made?
A: This product is made in China. - Q: What is the range of this camera?
A: The long range infrared camera has a range of up to 1000 meters. - Q: What type of lens does this camera have?
A: This camera has a high-quality infrared lens for clear and
accurate imaging in low light conditions.
