Product Description:

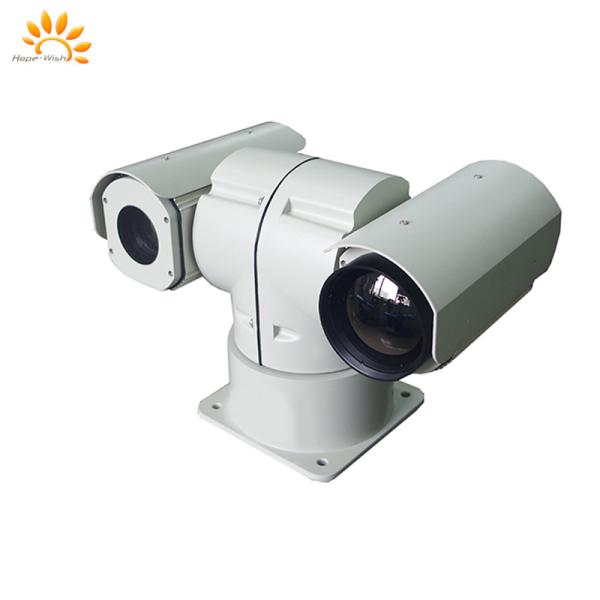

BTVC Series T Shape Dual-Sensor Thermal Camera is high-end custom intelligent surveillance camera. A
multi-function device be combined with thermal imaging camera,
visible CCD, precise actuating and gearing unit, digital decoder,
high-performance image processing unit and control unit.
BTVC series camera features compact design and accurate
positioning. With such functions as presetting and patrolling, the
camera leaves no blind spot undetected.
The Long Range Infrared Camera is designed to withstand extreme
temperatures, with a working temperature range of -25℃～+55℃. For
even more demanding environments, an optional feature of -40℃ is
also available, making it suitable for use in a variety of climates
and conditions.
Connector: Aviation Water-Proof Connector
This camera is equipped with an aviation water-proof connector,
ensuring a stable and secure connection. This allows for
uninterrupted use, even in harsh weather conditions.
Feature: IP66
Features:
- 24-hour real time surveillance is ensured with both thermal and
visible camera.
- 50mk thermal sensitivity and SDE digital image enhancement produces
clearer image under foggy and rainy days.
- Anti-lighting, anti-wave, capability to withstand 3000V
instantaneous current.
- Aluminum alloy housing, excellent heat dissipation, IP65 ingress
protection.
Technical Parameters:
| Model | HP-BTVC6110-2132 |
| Detection | Vehicle: 8600m |
| | Human: 3400m |
| Identification | Vehicle: 2400m |
| | Human: 900m |
| Thermal sensor | 336*256/640*512, UFPA, 7-14um spectral response, 50mk NETD |
| Thermal lens | 100mm |
| FOV | 13°°～4.3°° |
| Visible | 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W
mode |
| Lens | 8~320mm , 40X zoom |
| Pan | 0° to 360° continuous |
| Tilt | -90°~+90° |
| Pan speed | 0°~100°/s |
| Tilt speed | 0°~60°/s |
| Preset | 128 |
| Scan | 3(user can set the starting and end point; adjustable scanning
speed; ) |
| Path | 6(16 points for each path, adjustable duration on each point) |
| Pattern | 3(approx. 2 minutes for each pattern) |
| Menu | English |
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) |
| Protocol | Pelco-D/P and other mainstream protocols |
| Baud rate | 2400/4800/9600/19200bps |
| Heating/defrosting/Wiper | Available |
| Ingress protection | IP66 |
| Working temp. | -35~55℃ |
| Power supply | AC24V/2.5A |
| Weight | 7kg |
Applications:
City safety, oilfield safety, railway security, night gathering
evidence.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in
Jinan high tech Zone and has a core R&D team for laser imaging,
infrared thermal imaging detection and tracking technology research
and product. Hope-Wish focuses on the research and development of
night vision and multispectral imaging technology, by using a
variety of image analysis and processing technology based on
artificial intelligence to provide users with comprehensive
optoelectronic system solutions in long-distance, high-definition,
intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV,
intelligent transportation, forest fire prevention, environmental
protection, individual photoelectric equipment (handheld, helmet,
gun aiming), marine and other industries. The products developed by
the Hope-Wish, with their excellent performance, reliable quality
and thoughtful after-sales service has been widely praised by users
all over the world.FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is Hope-Wish.
- Q: What is the model number of this product?
- A: The model number of this product is HP-
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: What type of camera is this?
- A: This is a long range infrared camera.
- Q: What is the maximum distance this camera can capture?
- A: This camera can capture images up to a distance of 500 meters.
