Overview:

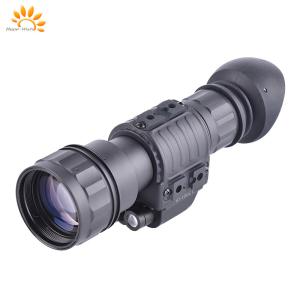

HP-DM2013 is a very popular military grade multifunctional night
vision product in the market. As a classic monocular low-light
night vision device, high magnification - long viewing distance,
large objective lens - strong light transmission, can be equipped
with 2nd generation + or quasi-3rd generation (G450+) image
intensifier tube according to customer needs . As a multifunctional
monocular night vision device, it can be connected to mobile
phones, cameras, etc. for night shooting and functional
accessories. The diversity of optional accessories greatly expands
the scope of use of this night vision device. This product has
strong practicability and can be used for night hunting, night
fishing, forest fire prevention, power line inspection, home
security, public security night patrol, investigation and evidence
collection, frontier anti-smuggling, etc. It is an ideal device for
both military and civilian use.
Key Benefits:
1. The perfect combination of durability and fine workmanship.
2. The night vision device uses the 2nd generation + level image
intensifier (DM2013), and can also be equipped with a higher level
quasi-3rd generation (DM3013) intensifier, which is suitable for
different budgets and task requirements.
3. Military-grade multi-layer coating standard: ultra-broadband
multi-layer anti-reflection coating can suppress the broadband
reflection of the glass surface of the lens, reduce light loss, and
allow more light to pass through the lens to obtain a good
observation effect.
4. A separate infrared intensifier can be selected to enhance the
effect of night use and expand the scope of application; an
optional sight accessory can be used as a simple night vision
sight; it can be connected with digital cameras, cameras,
camcorders, mobile phones, etc. to shoot at night use.
5. The spring embedded design of the battery cover ensures that the
night vision device can better contact with the battery and the
spring is not easy to be damaged, and it is also easier to replace
the battery quickly.
6. The eyepiece visor, built-in IR light and low battery indicator
(displayed in the eyepiece) enhance the user's concealment.
Kit includes:
Night vision device, Soft helmet, Carrying case, Manual, Lens
cleaning cloth, Warranty card, Desiccant
Technical Specification:
| Model | HP-DM3015 |
| IIT | Gen3 |
| Resolution (lp/mm) | 57-64 |
| Photocathode type | GaAs |
| S/N (dB) | 21-24 |
| Luminous sensitivity (μА/lm) | 1500-1800 |
| MTTF (hrs) | 10,000 |
| Magnification | 5x |
| FOV (deg) | 40 |
| Detection distance (m) | 250-280 |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 60mm |
| Range of focus (m) | 0.25--∞ |
| Dimensions (mm) | 235X77X61 |
| Weight (g) | 793 |
| Power supply (v) | 2.0-4.2V |
| Battery type (v) | 1 3V CR123A lithium battery |
| Battery life (hrs) | 80(w/o IR) 40(w IR) |
| Operating temperature(℃) | -40/+60 |
| Environmental rating | IP67 |
