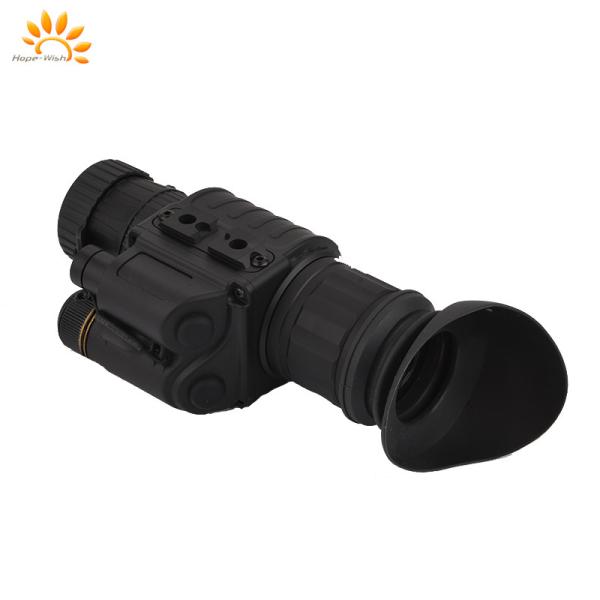

Product Description:
HP-DM2011 is a very popular military-grade multifunctional
individual night vision device in the market. It can be worn on the
head or helmet, can be mounted on a weapon for hunting or shooting,
and can also be used with a camera or video camera for shooting
night scenes.
The Thermal Imaging Monocular is a revolutionary night vision
googles that features a high-performance thermal camera that
captures and displays thermal images in real-time. With its
spectral range of 7.5 to 13.5 μm and a detection range of 1,000 m,
the Thermal Imaging Monocular offers unparalleled performance in
critical situations. With its image resolution of 640 X 480, it
ensures clarity and accuracy, even in low-light conditions.
Additionally, its operating temperature ranges from -20°C to +50°C,
and its frame rate is 50 Hz, ensuring that it can be used in a
range of extreme environments. The Thermal Imaging Monocular is the
perfect tool for anyone looking for a reliable thermal imaging
camera.
Features:
1. Waterproof and dustproof up to IP68 level (optional)
- Direction-sensing automatic switch: When you don’t need to use the
device temporarily, you can press a button on the helmet to lift
the device up to the top position and then let go, and the device
will automatically turn off. 3. 3. When it is necessary to continue
to use, press the same button to put down the device to the
observation position, and the device will automatically return to
the working state at this time.
- The magnification can be changed by changing the objective lens,
optional 3x, 5x or 6x lens
- Optional separate infrared enhancer
- Standby zero consumption: When not in use for a long time, the
battery will not lose power when placed in the battery holder
Technical Parameters:
| Model | HP-DM2011 |
| IIT | GEN2 |
| Eye protection mask | YES |
| Anti-strong light automatically | YES |
| Helmet holder | reversible and demountable easily |
| Magnification | 1x | |
| Detective distance(M) | 200~250 | |
| Recognition distance(M) | 150~200 | |
| FOV(deg) | 40° | |
| Objective lens adjustment | 0.25~~∞ | |
| Diopter adjustment | ±5 |
| Eye relif diameter | 15mm |
| Eye relif distance | 15mm |
| Eyes distance range | 57~73mm |
| Battery type | 1.5V(CR123) lithium cells(2) |
| Power supply | 3V |
| Continuous working time | 40hours with the IR on,80hors with the IR off |
| Dimensions | 145*125*65mm | |
| Net weight | 490g | |
| Operating temperature range | -40℃~~~+40℃ |
| Using life | 10000hours |
Company Profile:
Hope Wish Photoelectronics Technology Co., Ltd. was established in
Jinan high tech Zone and has a core R&D team for laser imaging,
infrared thermal imaging detection and tracking technology research
and product. Hope-Wish focuses on the research and development of
night vision and multispectral imaging technology, by using a
variety of image analysis and processing technology based on
artificial intelligence to provide users with comprehensive
optoelectronic system solutions in long-distance, high-definition,
intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV,
intelligent transportation, forest fire prevention, environmental
protection, individual photoelectric equipment (handheld, helmet,
gun aiming), marine and other industries. The products developed by
the Hope-Wish, with their excellent performance, reliable quality
and thoughtful after-sales service has been widely praised by users
all over the world.FAQ:
Q&A
- Q: What is the Brand Name of this Thermal Imaging Monocular?
A: The Brand Name of this Thermal Imaging Monocular is Hope-Wish. - Q: What is the Model Number of this Thermal Imaging Monocular?
A: The Model Number of this Thermal Imaging Monocular is HP-DM. - Q: Where is this Thermal Imaging Monocular made?
A: This Thermal Imaging Monocular is made in China. - Q: What certifications does this Thermal Imaging Monocular have?
A: This Thermal Imaging Monocular has CE and FCC certifications. - Q: What is the minimum order quantity of this Thermal Imaging
Monocular?
A: The minimum order quantity of this Thermal Imaging Monocular is
1 unit.
