Product Description:
Key Benefits:
- Long range 24-hours monitoring.
- Delicate and smooth images．
- Convenient for installation and application.
- 360 degree of Omni-directional Pan-Tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight

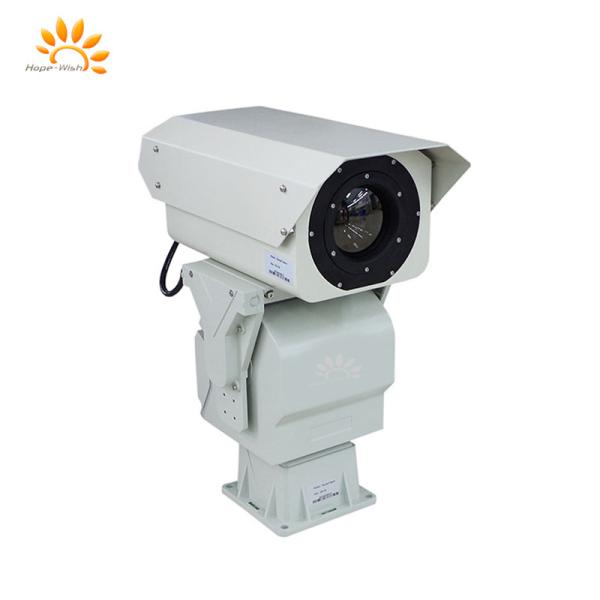

The Long Range Thermal Camera is an advanced thermal imaging camera
that is designed for long-distance surveillance. It has an Ethernet
interface, giving it a high-speed connection to enable remote
monitoring. It features a minimum focus distance of 1.5m and a
manual zoom lens, allowing it to capture detailed images from long
distances. The camera has a compact and lightweight design, with
dimensions of 175mm X 175mm X 175mm. The image frequency is 9Hz,
providing fast and real-time image capture.
Features:
- VOx uncooled detector, 640*512 (384*288 );
- NETD is less than 50mk (@25℃F1.0);
- SDE digital image processing, AGC, 2X digital amplification;
- 10 pseudo color and B/W, B/W inverse;
- Intelligent functions: cross-border/ intrusion detection and target
tracking;
- 255 level alarm threshold can be setup
- Advanced algorithm support shot-point/ fire detection and alert;
- One integral aluminum alloy housing, water proof, IP66 weather
proof, anti-dust.
Technical Parameters:
| Model | HP-TC6511 |
| Detection | Vehicle: 8600m / Human: 3400m |
| Identification | Vehicle: 2400m / Human: 900m |
| Thermal Camera |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 640 × 512 pixel (384 × 288 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 21 - 105mm |
| Field of view(horizontal) | 18.5° × 13.9° - 3.7° × 2.8° |
| PTZ |
| Duty | 30kg CNC PT |
| Rotation | Pan: 0～360°, Tilt: -45°～+45° |
| Rotation speed | Pan: 0.01°～60°/S, tilt: 0.01°/S ～30°/S |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP,
SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0,
GB28181 and other network protocol. |
| Environment Parameter |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General |
| Total Consumption | 180W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤25kg (include PTZ) |
Applications:
Long Range Thermal Camera Applications and Scenarios
The Hope-Wish HP-TTVC Long-Range Thermal Camera is an ideal choice
for a variety of long-distance surveillance applications and
scenarios. This heavy-duty camera is equipped with a Manual Zoom
lens and runs on DC12V power supply. It has an impressive 640x480
resolution and an operating temperature range of -20°C to +50°C. It
also has a lightweight 2.5kg body, making it easy to transport and
install.
The Hope-Wish HP-TTVC Long-Range Thermal Camera is perfect for
outdoor security applications, such as monitoring borders, ports,
and airports. With its long-distance thermal imaging capabilities,
it can detect and track humans and objects up to 1,000 meters away.
It can also be used for law enforcement, wildlife tracking, and
firefighting operations.
In addition, the Hope-Wish HP-TTVC Long-Range Thermal Camera is
ideal for industrial applications such as oil and gas exploration,
mining, and construction. It can detect heat sources and enhance
safety in hazardous environments. It can also be used to monitor
and analyze the performance of machines, such as turbines and
engines.
The Hope-Wish HP-TTVC Long-Range Thermal Camera is a versatile tool
for a wide range of applications and scenarios. Its long-distance
thermal imaging capabilities, durable design, and lightweight body
make it an ideal choice for any long-distance surveillance needs.
Support and Services:
Long Range Thermal Camera offers superior technical support and
services to ensure that our customers have an efficient and
seamless experience. Our team of experienced professionals can
provide comprehensive support and help you troubleshoot any issues
you may have with our products. Our experts are available to answer
any questions you may have and provide advice and solutions to any
problems you may encounter.
We offer a variety of options for technical support including
email, phone, and live chat support. Our experts are available to
answer any questions you may have and provide advice and solutions
to any problems you may encounter. We also provide customized
service plans for our customers, which include 24/7 support, remote
diagnosis, and on-site service. Additionally, we offer training and
education services for our customers to ensure they have the
knowledge and skills to effectively use our products.
We are committed to providing our customers with the highest level
of service and support possible. Our goal is to ensure that our
customers are satisfied with their experience and to provide them
with the tools and resources they need to succeed. If you have any
questions or need assistance, please do not hesitate to contact us.
Company Profile:
Hope Wish Photoelectronics Technology Co., Ltd. was established in
Jinan high tech Zone and has a core R&D team for laser imaging,
infrared thermal imaging detection and tracking technology research
and product. Hope-Wish focuses on the research and development of
night vision and multispectral imaging technology, by using a
variety of image analysis and processing technology based on
artificial intelligence to provide users with comprehensive
optoelectronic system solutions in long-distance, high-definition,
intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV,
intelligent transportation, forest fire prevention, environmental
protection, individual photoelectric equipment (handheld, helmet,
gun aiming), marine and other industries. The products developed by
the Hope-Wish, with their excellent performance, reliable quality
and thoughtful after-sales service has been widely praised by users
all over the world.
