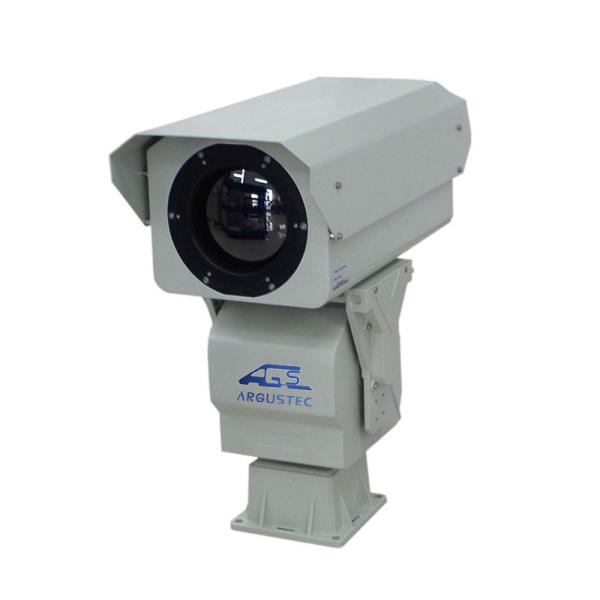

    Security Surveillance Thermal Imaging Long Range Thermal Camera 10km

    Key Benefits:

    CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. Special design of 20X optical zooming lens have detection distance 55km, suit for both seeking and watching.

    One integral aluminum alloy housing makes sure the camera works well outdoor. In combination with 360-degree PT, the camera is capable of conducting 24 hours real-time monitoring. The camera is IP67 rates, which ensures camera´s normal operation under tough weather conditions.


    Overview:

    • NETD 20mk enhance the imaging details even in foggy/rainy/snowy weather.

    • Special AS optical zooming lens and 3CAM high-precision optomechanical

    • Function of life index recording for thermal camera

    • WZ Non-uniform image correction technology, good image uniformity and dynamic range.

    • SDE digital image processing, no image noise, 16 pseudo color images

    • One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.


    Applications:

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Oilfield & oil depot security;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Highways and railways monitoring.


    Technical Specification:

    Model

    HP-CTC64080

    Effective Distance

    (DRI)

    Vehicle (2.3*2.3m)

    Detection: 20km; Recognition: 13km; Identification: 7km

    Human (1.8*0.6m)

    Detection: 15km; Recognition: 8km; Identification: 4km

    Ship (20*5m)

    Detection: 55km; Recognition: 40km; Identification: 20km

    Thermal Sensor

    Sensor

    Cooled Focal Plane Array (FPA) MCT HgCdTe detector

    Cooling

    Stirling cryocooler (Life time 8000~10000 hrs)

    Effective Pixels

    640x512,50HZ

    Pixel Size

    15μm

    NETD

    ≤20mK

    Spectral Range

    3.7 - 4.8μm, MWIR

    Thermal Lens

    Focal length

    40~800mm 20X F4.0

    FOV (640*512)

    13.6°×11°~0.7°×0.51°

    Angular radian

    0.37~0.019mrad

    Focus

    Manual/Auto Focus (3A adaptive active focusing algorithm, supports multiple trigger modes).

    Lens Type

    Motorized (Electronic Zoom)

    Optical Machine

    3CAM mode and AS+DOE optical structure


    Image Stabilization

    Support Electronic Image Stabilization

    Enhance

    Stable operational temperature without TEC, starting time less than 4 seconds

    SDE

    Support SDE digital image processing

    Pseudo Color

    16 pseudo color and B/W, B/W inverse

    AGC

    Support

    Digital Zoom

    1~64X (Continues Zoom, step 0.1)

    Enhance

    Strong Light Protect

    Support

    Temp Correction

    Thermal imaging clarity is not affected by temperature.

    Scene mode

    Support multi-configuration scenarios, adapt to different environment

    Lens Servo

    Support lens preset, focal length return and focal length location.

    Azimuth Information

    support angle real-time return and positioning; azimuth video overlay real-time display.

    Parameter Setting

    OSD Menu Remote Call Operations.

    Life Index Recording

    Working time, shutter times, ambient temperature, core device temperature

    PTZ

    Load Ability

    50kg

    Rotation

    Pan: 0~360°, tilt: -45~+45°

    Speed

    Pan: 0.01~30°/S, Tilt: 0.01~15°/S

    Preset

    255

    Interface

    Ethernet

    RS-485(PELCO D protocol, baud rate 2400bps),RS-232(option),RJ45

    Protocol

    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF

    Video Output

    PAL/NTSC

    Power

    AC12V /DC24V

    Compression

    H.265 / H.264 / MJPEG

    Environmental

    Operate Temp

    -25℃~+55℃(-40℃ optional)

    Storage Temp

    -35℃~+75℃

    Humidity

    <90%

    Ingress Protect

    IP66

    Housing

    PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug
