    Body Temperature Thermal Imaging Camera Thermography 640x512

    Ask Lasest Price
    Brand Name : HopeWish
    Model Number : HP-KTC4100
    Certification : CE, FCC, ROHS, ISO9001
    Price : 1000~5000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pcs/month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

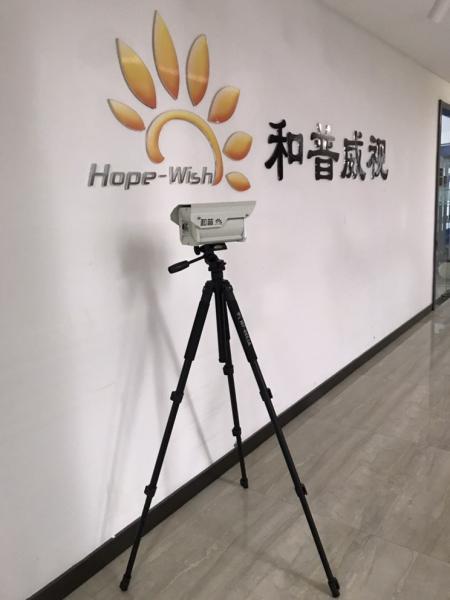

    Body Temperature Thermal Imaging Camera Thermography 640x512

    Infrared Body Temperature Screening Thermal Camera


    Body Temperature Thermal Imaging Camera Thermography 640x512

    Key Benefits:


    l Security: non-contact measurement, reduce the risk of cross infection

    l Efficient: Detect multiple people at the same time less than 1 second

    l Accuracy: Error less than ± 0.3 ℃

    l Stability: Automatic temperature calibration function, good temperature stability

    l Intelligent Alarm: Support temperature threshold setting and automatic screening warning mechanism, real-time alarm.

    l Full-time work: 7 × 24 real-time rapid body temperature screening


    ModelHP-KTC4100
    Measurement Range30℃~45℃
    Identification≤±0.3℃
    Thermal Camera
    SensorUncooled VOx Sensor
    Resolution384 × 288 pixel640 × 512 pixel
    Spectral range8~14μm
    NETD≤50mK@25℃,F#1.0(≤40mK for option)
    Focal length12mm/20mm
    Pixel17μm
    Image processDDE image enhancement/3D digital Noise Reduction/ Accurate blind elimination/ No bright spots and dark spots in the FOV
    Gain ControlManual/Auto
    NUC correctionManual/Auto
    Image MirroringLeft-Right/Up-Down/Opposite Angles
    Digital zoom1.0~8.0X continuous zoom, digital zoom picture in picture eagle chart display
    Pseudo colorSupport White/Hot, Black/Hot, and other 16 kinds pseudo color
    Full life managementRecord function for health index of the thermal core
    Product Performance
    Temperature displayDisplay the maximum temperature point
    Temperature calibrationCalibration indication
    Communication Interface1*RJ45, 1*RS485,1*RS422,1*RS232
    Analog output interface1*CVBS output, BNC interface
    Alarm1*input, 1*output
    Video CompressionH.265/H.264/MJEPG
    Audio CompressionG.711
    Motion DetectionSupport video masking, support motion detection alarm
    Installation methodBy bracket/By Pole/By tripod
    Recording

    Built-in SD card slot, support Micro SD/SDHC/SDXC card (Max 128G),

    Support manual recording/ Alarm recording

    Network
    WebSupport Web Configuration
    Network ProtocolSupport HTTP;TCP;RTSP;RTP;UDP;RTCP;support ONVIF 28181
    Environment Parameter
    Operating temperature-20℃~+65℃
    Protection LevelIP66, Anti-lighting TVS 6000V Surge protection
    General
    Total Consumption≤5W
    Power supplyDC12V
    Weight≤2kg

    Applications:


    l Airports

    l Railway stations

    l Passenger stations

    l Subway stations

    l crowded areas such as schools and comprehensive parks.
