Product Description:
Overview:

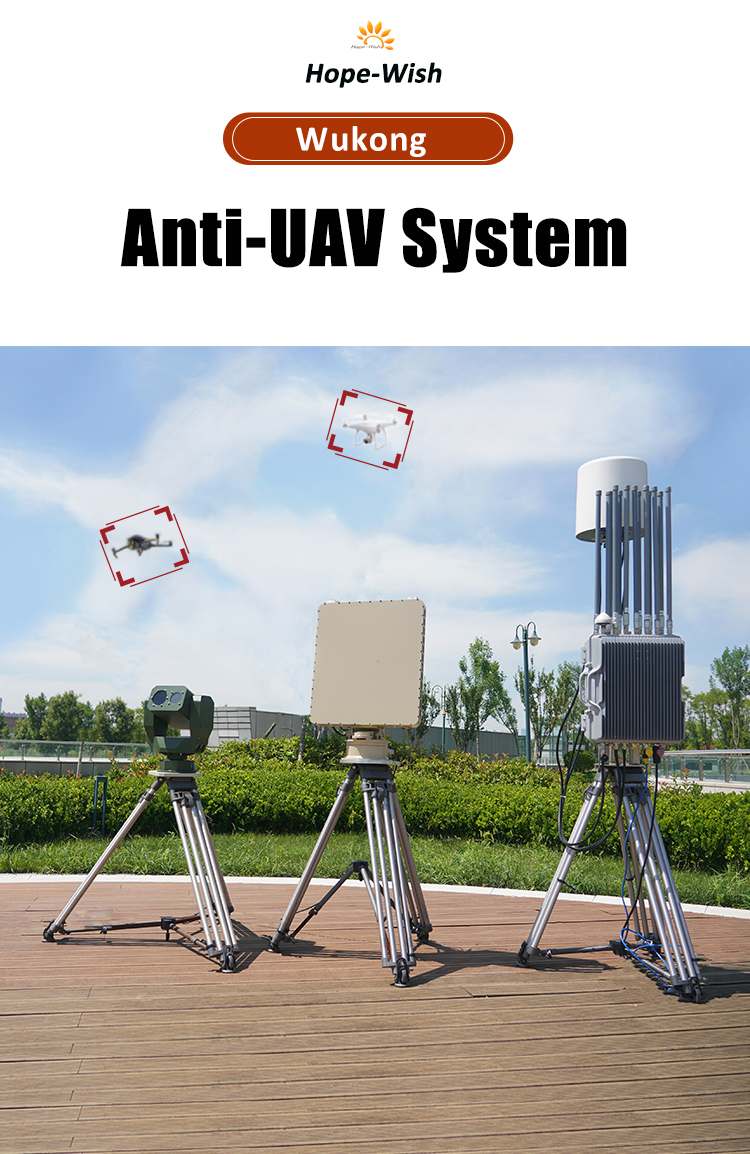

The integrated drone detection and countermeasure device detects,
finds the direction and analyzes the characteristics of the drone
image transmission and control link signals, and emits targeted
interference signals accordingly, so as to achieve effective
detection, direction finding, identification, positioning and
interference of drones and remote controllers.
Key Benefits:
- UAV jamming latest DDS core algorithm provides powerful FM and FPV
drone jamming.
- Comprehensive detection frequency coverage 70MHz-6GHz frequency
coverage,
- complete drone model library to meet the needs of different
customers
- Customizable strike frequency 8 common frequencies and 8 customized
frequencies,
- covering 400MHZ-5.8GHZ
- Flexible networking platform can be separated and paired with other
detection and strike
- equipment for coordinated operations
- 1+N efficient equipment linkage access to low-altitude defense
platform, which can
- integrate radar, navigation equipment and observation
- Al self-learning equipped with drone signal acquisition module,
which can autonomously
- learn and define feature libraries
- Reliable military-grade quality aviation aluminum fuselage, can
operate at -40'C to +60'c
- Customized color and language
Technical Parameters:
| Model Number | HP-RCD-YT |
| Detection frequency range | 70MHz-6GHz full band 400MHZ,800MHz,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHzKey
detection |
| Detection distance | 5~10km |
| Reconnaissance airspace | 360°full airspace |
| Direction Measuring Accuracy | ≤ 10 degrees (follow); ≤ 3 degrees (hover) |
| Defense frequency bands | 800 MHZ,900MHZ,1.2GHZ,1.4GHZ,1.5GHz,2.4GHZ,5.2GHz,5.8GHZ Expandable defense band range400MHz-6GHz full band |
| Counteraction airspace | 360°full airspace |
| Counteraction distance | 3km |
| Protection Grade | IP66 |
| Weight | 15kg+25kg |
Dimensions
| 666mm'400mm (height ,radius),/500mm'460mm'233mm(length * width "
height) |
| Operating Temperature | -40℃~70℃ |
| Continuous operation capability | Can work 24 hours a day |
Applications:
- Land Border Surveillance
- Sea Surface Surveillance
- Fortress Protection
- Battlefield reconnaissancesign
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in
Jinan high tech Zone and has a core R&D team for laser imaging,
infrared thermal imaging detection and tracking technology research
and product. Hope-Wish focuses on the research and development of
night vision and multispectral imaging technology, by using a
variety of image analysis and processing technology based on
artificial intelligence to provide users with comprehensive
optoelectronic system solutions in long-distance, high-definition,
intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV,
intelligent transportation, forest fire prevention, environmental
protection, individual photoelectric equipment (handheld, helmet,
gun aiming), marine and other industries. The products developed by
the Hope-Wish, with their excellent performance, reliable quality
and thoughtful after-sales service has been widely praised by users
all over the world.
