Product Description:
Overview:

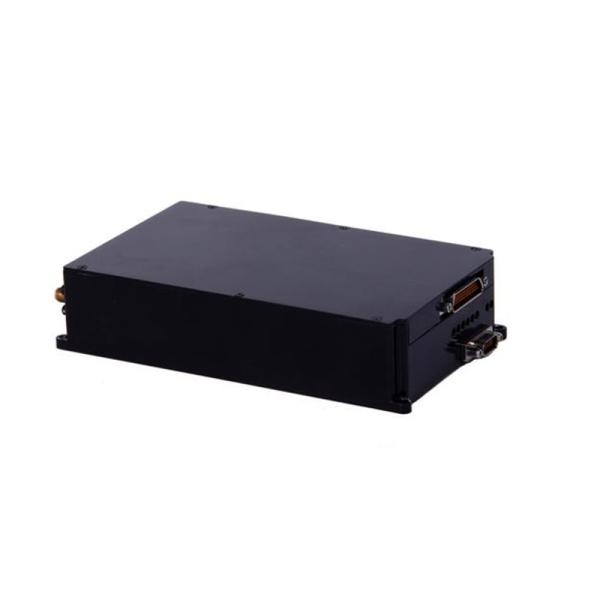

HP-NET1371A is a wireless data link airborne terminal developed for
UAV. It provides two network interfaces and two transparent serial
ports for applications. It can connect to network cameras to
transmit one or more channels of HD real-time video and support the
telemetry and remote control of drones. It is compact in size and
weighs only about 60g, suitable for occasions with strict
restrictions on weight and volume. The data stream transmission
delay is less than 7ms, which is almost real-time. It supports
multiple networking modes such as point-to-point,
point-to-multipoint, and relay. It can be widely used in various
industrial occasions.
Key Benefits:
- Long distance: Line-Of-Sight communication range up to 250km+
- Allowable carrier speed: greater than 120 km/h
- Interface: two serial ports, two network ports
- Weight is only about 60g
- Maximum sensitivity: -110dbM (1M bandwidth, BPSK, FEC1/2, dual
antenna)
- Applicable fields: public security, armed police, firefighting,
Internet of Things, drones, vehicle networking, wearable networking
- Optimized for image transmission, suitable for self-organizing
network image multi-point long-distance transmission
Technical Parameters:
| HP-NET1371A |
System parameters | Transmission distance | ≥15km@data 4Mbps, omnidirectional antenna |
| Data delay | ≤7ms |
| MIMO | dual antenna, 2T2R/1T2R configurable |
| weight | ≤60g |
| Dimensions | 72mm*48mm*10mm |
| Power supply voltage | DC:7V~28V |
| Equipment power consumption | transmitting power consumption <16W, receiving power consumption
≤4W |
RF parameters | Modulation mode | BPSK/QPSK/16QAM/64QAM adaptive |
| Working frequency band | 1.4GHz(other frequency can be customized) |
| Channel bandwidth | 1MHz~8MHz |
| Maximum sensitivity | -110dbM (1M bandwidth, BPSK, FEC1/2, dual antenna) |
| Output power | 10~30dBm |
Data parameters | Data bandwidth | Max. 30Mbps,customizable 300Mbps |
| Data security | Support AES128/256 encryption Support LDPC check |
| Serial port baud rate | 9600bps～230.4Kbps |
Connectors | Power supply/data | J30J-21,RS232 |
| Antenna interface | SMA-K*2 |
| Network interface | J30J-21*2 |
Environmental parameters | Working temperature | -40℃~+80℃ |
| Humidity | ＜95%,non-condensing |
Applications:
- Land Border Surveillance
- Sea Surface Surveillance
- Fortress Protection
- Battlefield reconnaissancesign
